Generate QR Codes in Swift
with CIFilter

Why Use CIFilter for QR Codes?

When Apple engineers need to generate a QR code on-device, they reach for CIQRCodeGenerator — a built-in Core Image filter available since iOS 7 and macOS 10.10. It requires zero additional dependencies, works entirely offline, produces standards-compliant QR codes, and runs on the GPU when available. For most iOS and macOS applications, it is the correct default choice.

Third-party libraries such as QRCode (by Dagronrat) or EFQRCode add value when you need advanced module shaping, gradient fills, or SVG output. But if you just need a reliable, scannable QR code rendered as a UIImage or NSImage, the built-in filter handles everything. For a broader look at the technical encoding beneath the surface, see our QR code technical specifications pillar guide.

Basic QR Code Generation

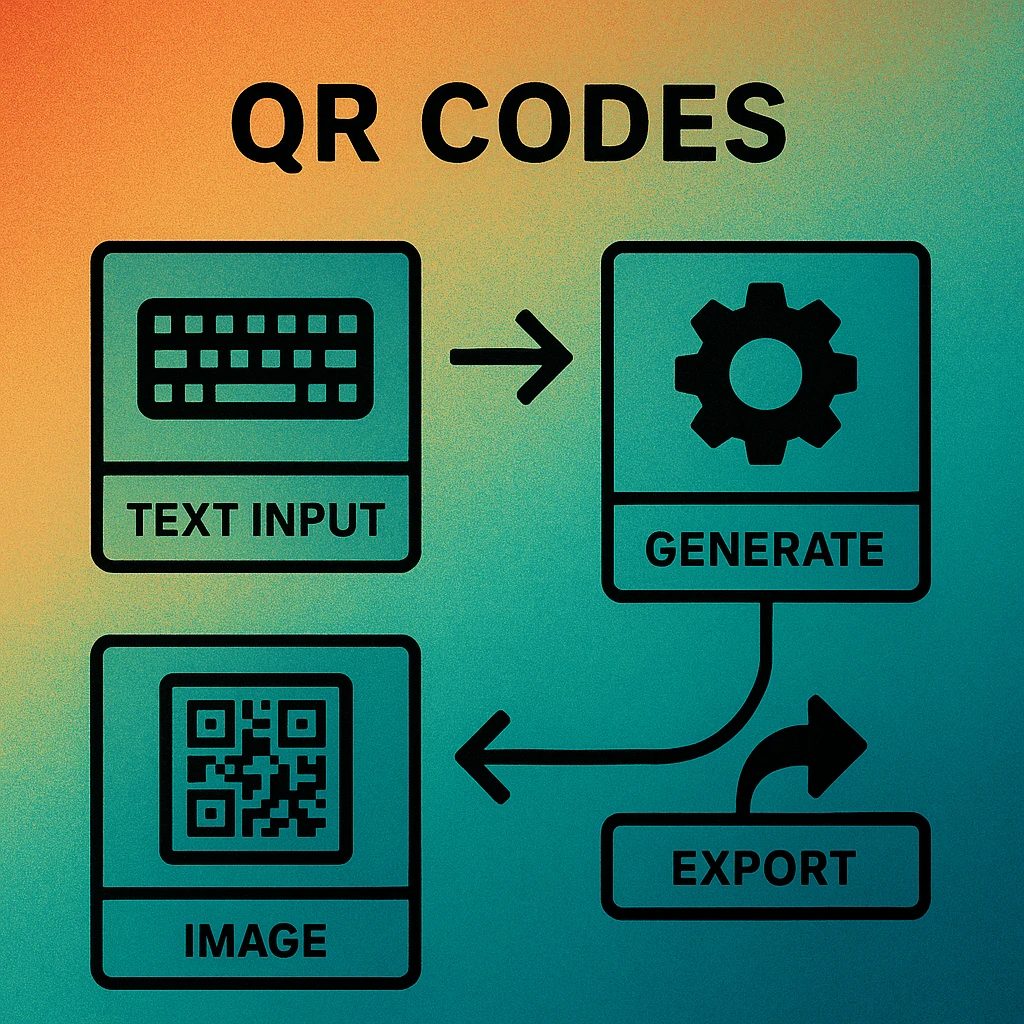

The minimal workflow has three steps: encode your string as UTF-8 data, pass it to the filter, and convert the output CIImage to a displayable image type. Here is the complete iOS implementation:

import CoreImage
import UIKit

func generateQRCode(from string: String) -> UIImage? {
    // 1. Encode the input string as UTF-8 data
    guard let data = string.data(using: .utf8) else { return nil }

    // 2. Configure the CIQRCodeGenerator filter
    let filter = CIFilter(name: "CIQRCodeGenerator")
    filter?.setValue(data, forKey: "inputMessage")
    filter?.setValue("H", forKey: "inputCorrectionLevel") // L M Q H

    // 3. Scale up to a usable size (avoids blur)
    guard let ciImage = filter?.outputImage else { return nil }
    let scale = CGAffineTransform(scaleX: 10, y: 10)
    let scaledImage = ciImage.transformed(by: scale)

    // 4. Convert to UIImage
    let context = CIContext()
    guard let cgImage = context.createCGImage(scaledImage, from: scaledImage.extent) else { return nil }
    return UIImage(cgImage: cgImage)
}

The inputCorrectionLevel key accepts "L", "M", "Q", or "H". Level H allows up to 30% of the code to be damaged or obscured while remaining scannable — the right choice when you plan to overlay a logo or apply colour transforms. Level M (15%) is a reasonable default for plain codes. Full error correction specifications are documented in our technical specifications guide.

Scaling and Sharpness

The raw output of CIQRCodeGenerator is a tiny image — typically 21×21 pixels for a version-1 code. Displaying it at any meaningful size without explicit scaling causes Core Animation to apply bilinear interpolation, which blurs the module edges into an unreadable grey smear.

The fix is to apply a CGAffineTransform scale before rasterising. A scale factor of 10 produces a 210×210 px image, which is crisp on all device resolutions. For Retina/3x screens targeting large display sizes, use 20 or 30.

Colour Customisation with CIFalseColor

To change module or background colours, pipe the output of CIQRCodeGenerator through the CIFalseColor filter. This replaces the greyscale intensity values with two colours of your choice: inputColor0 maps to dark pixels (the QR modules) and inputColor1 maps to light pixels (the background).

func generateColoredQRCode(
    from string: String,
    foreground: UIColor = .black,
    background: UIColor = .white
) -> UIImage? {
    guard let data = string.data(using: .utf8) else { return nil }

    let qr = CIFilter(name: "CIQRCodeGenerator")!
    qr.setValue(data, forKey: "inputMessage")
    qr.setValue("H", forKey: "inputCorrectionLevel")

    let color = CIFilter(name: "CIFalseColor")!
    color.setValue(qr.outputImage, forKey: "inputImage")
    color.setValue(CIColor(color: foreground), forKey: "inputColor0")
    color.setValue(CIColor(color: background), forKey: "inputColor1")

    guard let output = color.outputImage else { return nil }
    let scaled = output.transformed(by: CGAffineTransform(scaleX: 10, y: 10))

    let context = CIContext()
    guard let cgImage = context.createCGImage(scaled, from: scaled.extent) else { return nil }
    return UIImage(cgImage: cgImage)
}

Always verify contrast before shipping. The minimum safe contrast ratio between foreground and background is 3:1; 4.5:1 or higher is strongly recommended for consistent scanning across varying lighting conditions and camera qualities. Inverting the colours (light modules on a dark background) works technically, but scanner firmware support varies — test on both iOS and Android before relying on it.

SwiftUI Integration

Wrapping the generation logic in a SwiftUI View keeps your UI layer clean and makes the code instantly reusable. The example below works on both iOS and macOS using conditional compilation:

import SwiftUI
import CoreImage

struct QRCodeView: View {
    let content: String
    var size: CGFloat = 200

    var body: some View {
        if let img = makeQRImage(content) {
                .interpolation(.none)
                .resizable()
                .scaledToFit()
                .frame(width: size, height: size)
                .accessibilityLabel("QR code for \(content)")
        } else {
            Color.gray.frame(width: size, height: size)
        }
    }

    private func makeQRImage(_ string: String) -> Image? {
        guard let data = string.data(using: .utf8),
              let filter = CIFilter(name: "CIQRCodeGenerator") else { return nil }
        filter.setValue(data, forKey: "inputMessage")
        filter.setValue("H", forKey: "inputCorrectionLevel")
        guard let ci = filter.outputImage else { return nil }
        let scaled = ci.transformed(by: CGAffineTransform(scaleX: 12, y: 12))
        let ctx = CIContext()
        guard let cg = ctx.createCGImage(scaled, from: scaled.extent) else { return nil }
#if os(iOS)
        return Image(uiImage: UIImage(cgImage: cg))
#else
        let size = CGSize(width: cg.width, height: cg.height)
        return Image(nsImage: NSImage(cgImage: cg, size: size))
#endif
    }
}

The critical detail is .interpolation(.none) on the Image view. Without it, SwiftUI applies its own smoothing when the image is resized, blurring the sharp module edges. Setting it to .none forces nearest-neighbour rendering and preserves crisp pixel boundaries at any display size.

Export Options: PNG, JPEG, and Beyond

Once you have a CGImage, exporting to file formats is straightforward. For pixel-based formats, use CIContext directly or go through UIImage/NSImage:

macOS-Specific Notes

The Core Image pipeline is identical on macOS, but the image types differ. Replace UIImage with NSImage, and use NSBitmapImageRep for file export. The CIContext on macOS defaults to the GPU renderer when a discrete GPU is available, which is typically faster for batch generation tasks.

If you are building a macOS menu bar app or document-based app that generates QR codes, take a look at our QR code generator for Mac overview and the CIFilter QR code macOS deep-dive for platform-specific optimisations including NSImage PDF export and WKWebView SVG rendering patterns.
